Thybar Mounting Supports Simplify Rooftop Installations

Three basic styles of supports are offered; TEMS-1, TEMS-2, and TEMS-3.

Oct. 22, 2015

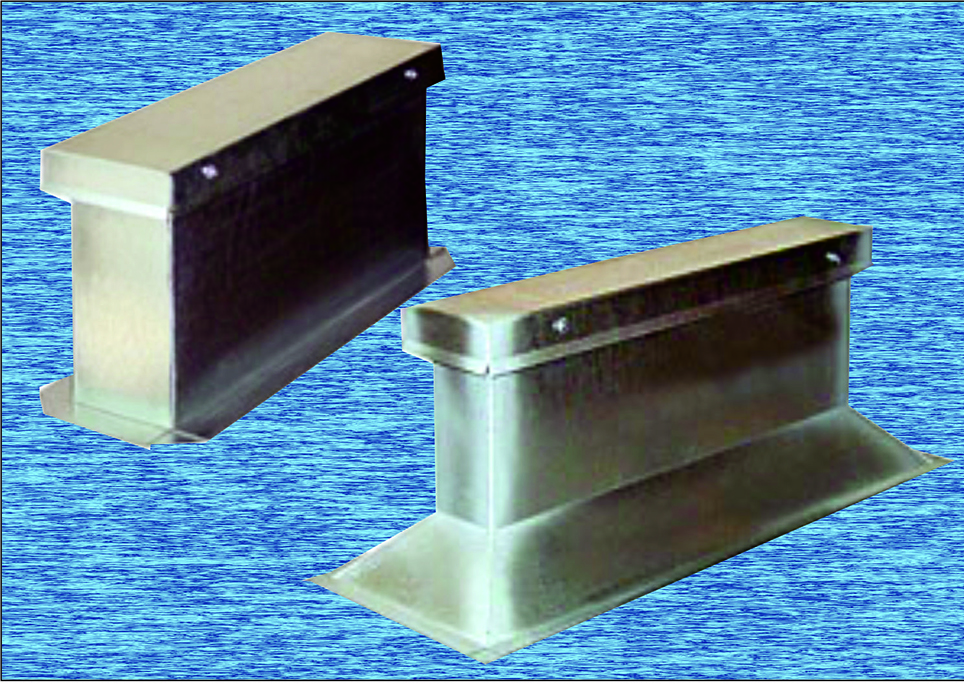

The supports have a high load bearing capacity attained by a system of internal bulkheads welded into position at specific intervals along the lengths of the rails.

Roof installations of heating, ventilating and air conditioning units is made easier with equipment mounting supports from Thybar Corporation, Addison, Ill. The supports have a high load bearing capacity attained by a system of internal bulkheads welded into position at specific intervals along the lengths of the rails.

Three basic styles of supports are offered; TEMS-1, TEMS-2, and TEMS-3. Standard construction includes: welded 18 Ga. Galvanized steel shell, base plate and counter-flashing, factory installed wood nailer, fully mitered end sections (Models TEMS-2 & TEMS-2) and internal bulkhead reinforcement. Optional features are: additional height, heavier gauge metal, construction to fit roof pitches, wood nailers up to 2” x 12”, pressure treated wood nailers, and overhanging wood nailers.

Supports for special applications include: roller supports complete with painted roller, 18-in. threaded rods, nuts & spring nuts. The support has a continuous wood nailer covered by a removable counter-flashing.

For further information, contact: Thybar Corporation, 913 South Kay Avenue, Addison, IL 60101.
Contact by phone: 800-666-CURB. E-mail: [email protected] Website: thybar.com.
