    Corrosion Protection for Cold Water Basins

    Aug. 19, 2021
    TriArmor helps cooling towers, fluid coolers and condensers withstand the harshest environments.

    Jessup, MD – Baltimore Aircoil Company reports that its  TriArmor® Corrosion Protection System provides the best corrosion and leak protection for the cold water basin at the best value. The TriArmor system has been used for more than 20 years, for  thousands of cooling towers, fluid coolers and condensers. TriArmor helps systems withstand the harshest environments, proving its durability and reliability. This patented system was designed specifically for evaporative cooling equipment for HVAC, industrial, and refrigeration applications, and is now backed by what BAC says is an industry leading 10-year warranty.

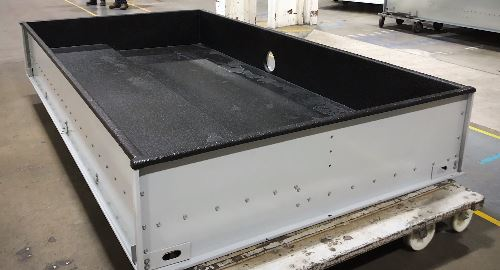

    The TriArmor System offers three layers of protection, starting with G-235 Galvanized Steel, the heaviest commercially-available galvanized steel. Universally recognized for its strength and durability, it offers excellent service life under normal operating conditions, with proper maintenance and water treatment.
    The second layer is a Thermosetting Hybrid Polymer baked onto the galvanized steel to create a durable barrier. This polymerized coating has been tested to withstand 6,000 hours in a 5% salt spray without blistering, chipping, or losing adhesion. The third layer, a Polyurethane Barrier, is a factory-applied, corrosion-resistant, impermeable coating that ensures a seamless basin. To help ensure leak-free longevity, microscopic chains of rubber-like resin molecules permanently bond tightly with one another and the thermosetting hybrid polymer. These three layers of protection form a bond for the ultimate in corrosion resistance and leak protection.

    In addition to real-world testing over the past two decades, the TriArmor Corrosion Protection System has also been subjected to a series of rigorous corrosion tests including an acid test (pH=4), an alkaline test (pH=11), a chloride level test, and a 5% salt spray test. Basins also endured heavy impact testing. Remarkably, there were no penetrations left in basins protected by the TriArmor System. These tests all conclusively demonstrate that the TriArmor System is superior to stainless steel.

    Protection of the cold water basin is the easiest way to extend the life of evaporative cooling equipment. As long as the basin is in good condition, nearly every other part of the equipment can be repaired or replaced. For more information visit THIS LINK.
